NTI DVI Extender via CAT5 up to 150 Feet

Price per Unit (piece):
Contact us for availability

Features & Applications

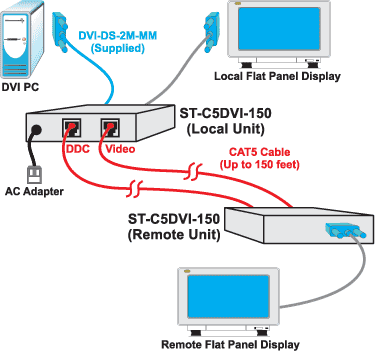

The XTENDEX DVI Extender transmits digital DVI video up to 150 feet away from a DVI source using two CAT5/5e/6 cables. Each video extender consists of a local unit that connects to a DVI source and also supplies video to a local monitor, and a remote unit that connects to a monitor.
  • Transmits single link DVI-D signal over two CAT5/5e/6 cables.
  • Extends high digital resolution up to 1920x1200.
  • Sharpest and clearest video quality over CAT5 of any manufacturer.
  • Supports local and remote DVI monitors.
  • Compatible with DDWG DVI standard.
  • HDCP Compliant
  • Supports the DDC2B protocol.
  • Built-in surge protection.
  • Only one power supply is necessary to power both the local and remote units.


Local Unit

  • Host Connection

    • Supports computers and video devices with single link digital DVI output.
    • Female DVI-I dual link connector for computer connection.
  • Local Access

    • Crisp and clear 1920x1200 video resolution.
    • Single link DVI-D signal.
    • Female DVI-I dual link connector for local monitor.

Remote Unit

  • Crisp and clear 1024x768 resolution at 150 feet; higher resolution supported at shorter distances.
  • Single link DVI-D signal.
  • Female DVI-I dual link connector for remote monitor.


  • WxDxH (in): 3.5x3.1x1.1


  • Local unit: 110 or 220 VAC at 50 or 60 Hz via AC adapter.
  • Remote unit: powered from local unit through CAT5/5e/6 cable.


  • Operating temperature: 32°F to 100°F (0°C to 38°C).
  • Storage temperature: -20°F to 140°F (-30°C to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

Regulatory Approvals

  • RoHS


  • 2-meter male-to-male single link DVI-D cable included.
  • Use CAT5/5e/6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).




Distances and Resolutions for CAT5/CAT5e and CAT6 Cables
Cable Distance
150 1024x768 at 60Hz
125 1280x1024 at 60Hz
100 1920x1200 at 60Hz
CAT6 150 1280x1024 at 60Hz
125 1600x1200 at 60Hz
100 1920x1200 at 60Hz
